Researchers from the College of Milano-Bicacca and the College of Milan have designed a low-cost “holographic microscope” — constructed by modifying an off-the-shelf optical microscope with a laser gentle supply and powered by a Raspberry Pi 3 Mannequin B single-board pc.
“We selected the Raspberry Pi3 as a result of it’s comparatively low cost and has extra RAM and onboard storage in comparison with most improvement boards with comparable options, though it requires a full-fledged working system,” the crew explains of its alternative of board for the mission. “These traits make it appropriate for performing memory-expensive duties comparable to picture processing and the variance filtering. As well as, whereas microcontrollers usually have a restricted variety of I/O [Input/Output] pins, Raspberry Pi 3 affords a wider vary of GPIO (Common Function Enter/Output) pins together with further interfaces comparable to USB exterior storage gadgets.”

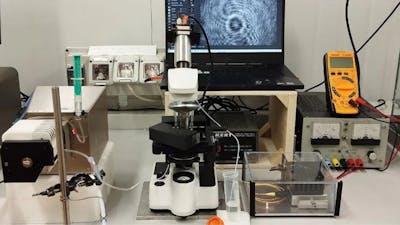

An off-the-shelf optical microscope linked to a laser gentle supply and a Raspberry Pi serves as a low-cost instrument for digital holographic microscopy. (📷: Ravasio et al)
The researchers’ reasoning will probably be acquainted to anybody who has additionally picked the favored Raspberry Pi vary of single-board computer systems for a mission, however what it is powering is somewhat uncommon: a “holographic microscope,” designed for holographic imaging of electromagnetic fields created by means of the interplay of topic particles and a beam of laser gentle. “A number of morphological and optical options will be extracted from the holograms,” the crew explains, “together with particle projected part, facet ratio, and extinction cross-section.”
Holographic microscopy, versus conventional optical microscopy, is well-suited for finding out airborne particles — and the crew proved the efficacy of its creation utilizing Alpine ice cores as a pattern. The microscope itself began life as a Bresser Erudit DLX 40-1000x optical microscope, modified by swapping out its white LED gentle supply for a Thorlabs 642nm laser and collimator. A 3D-printed meeting mounts the pattern the place the slides would usually go, and a a CMOS digital camera sensor captures the holographic interference sample produced because the pattern interacts with the laser.
The instrument captures holograms (marked with arrows, (a)), is processed (b), and a distinction picture (c) generated for evaluation (d). (📷: Ravasio et al)
“The {hardware} works whatever the alternative of the optical microscope or digital camera,” the researchers declare of their design, which will be managed remotely by way of a smartphone app utilizing the Raspberry Pi’s Wi-Fi or Bluetooth radios. “With our implementation, DH [Digital Holography] will be simply operated by a big person group and not using a particular optical laboratory, utilizing already obtainable instruments.”
The crew’s work has been printed underneath open-access phrases within the journal HardwareX.
